SPECTROFLEX V
Volumetric

SPECTROFLEX V

SPECTROFLEX V is ideally suited for dosing powders, pellets, regrind, granulates, flakes and fibers in continuous processes.

motan's unique interchangeable system provides two huge advantages over common dosing units. Firstly, the user can swap the quick exchange modules in less than one minute easily without any tools. Furthermore, the single and twin screw exchange modules are also interchangeable, allowing the user to configure the feeder for nearly any type of material in a matter of minutes.

SPECTROFLEX V: Dosing of non-free flowing materials
Dosing of non-free flowing materials Full flexibility - one unit for many different applications. Read more
SPECTROFLEX V: Exchange module
Exchange module Faster material changes – less cleaning time. Read more
SPECTROFLEX V: Volumetric version
Volumetric version The cost-effective solution for materials with consistent bulk densities. Read more
SPECTROFLEX V: Interchangeable dosing screws
Interchangeable dosing screws Save money with faster material changes! Read more
SPECTROFLEX V: No mechanical agitators
No mechanical agitators Because of the massage rollers you can also dose difficult and fragile materials. Read more
SPECTROFLEX V: Active filling of the dosing screw
Active filling of the dosing screw High dosing accuracy - even for small dosing quantities. Read more
SPECTROFLEX V: Elliptical massage rollers
Elliptical massage rollers Little wear and abrasion of the flexible dosing hopper. Read more
SPECTROFLEX V: Quick material exchange
Quick material exchange Higher efficiency thanks to less downtime in production. Read more
SPECTROFLEX V: VOLUnet SF control
VOLUnet SF control The cost effective solution for volumetric dosing. Read more
All advantages at a glance
Dosing of non-free flowing materials
Exchange module
Volumetric version
Interchangeable dosing screws
No mechanical agitators
Active filling of the dosing screw
Elliptical massage rollers
Quick material exchange
VOLUnet SF control
  • ×
×

Volumetric

SPECTROFLEX V

Dosing of non-free flowing materials

Full flexibility - one unit for many different applications.

The dosing organs (different types of screws) and the intensity of the discharge aid (massage paddle) of the SPECTROFLEX V can be adjusted to the type of material.

×

Volumetric

SPECTROFLEX V

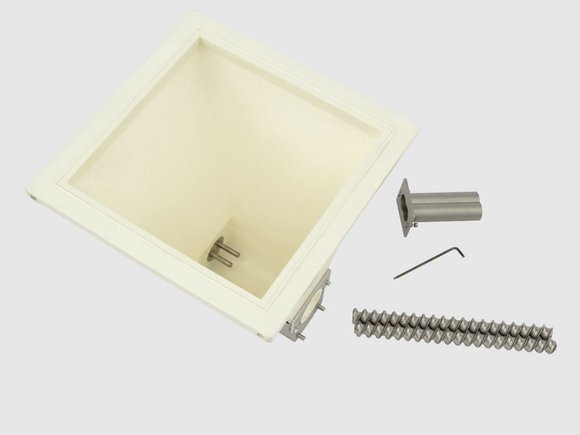

Exchange module

Faster material changes – less cleaning time.

Faster material changes – less cleaning time. The exchange modules can be swapped easily and without any tools. So, material changeovers can be made quickly and without previous clean-down of the dosing hopper.

The exchange modules come in different versions, equipped with either single, double, spiral or auger screws, allowing the user to configure the dosing unit for nearly any type of material in a matter of minutes.

×

Volumetric

SPECTROFLEX V

Volumetric version

The cost-effective solution for materials with consistent bulk densities.

If you need to dose a material that has a very stable and consistent bulk density, then load cells are not required – saving you money.

×

Volumetric

SPECTROFLEX V

Interchangeable dosing screws

Save money with faster material changes!

The pluggable screws can be exchanged in a matter of minutes. This makes adjustments of the throughput easy and shortens production downtime tremendously!

×

Volumetric

SPECTROFLEX V

No mechanical agitators

Because of the massage rollers you can also dose difficult and fragile materials.

Thanks to the massage rollers you don’t need to use mechanical agitators which are in direct material contact. So even difficult and fragile materials will not be damaged.

×

Volumetric

SPECTROFLEX V

Active filling of the dosing screw

High dosing accuracy - even for small dosing quantities.

The massage roller technology creates an active filling of the dosing screw -  without a mechanical agitator needing to be in the material flow.

×

Volumetric

SPECTROFLEX V

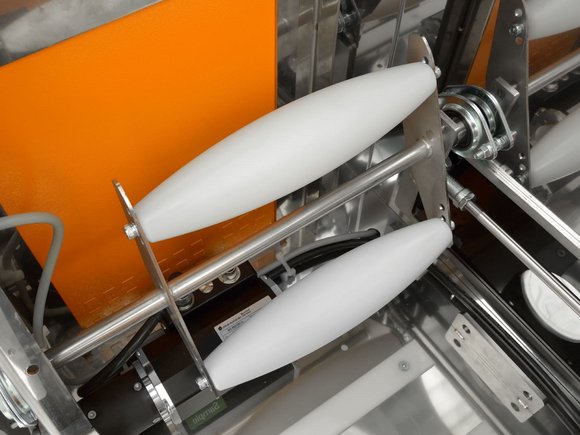

Elliptical massage rollers

Little wear and abrasion of the flexible dosing hopper.

In contrast to common massage paddles, which are normally used with other dosing hoppers on the market, the SPECTROFLEX V uses elliptical rollers.

The specific design of the oscillating massage rollers increases the lifespan of the polyurethane dosing hopper.

Powered by an independent motor, the elliptical massage rollers can be set to 48 different settings, guaranteeing you optimal dosing for various materials.

×

Volumetric

SPECTROFLEX V

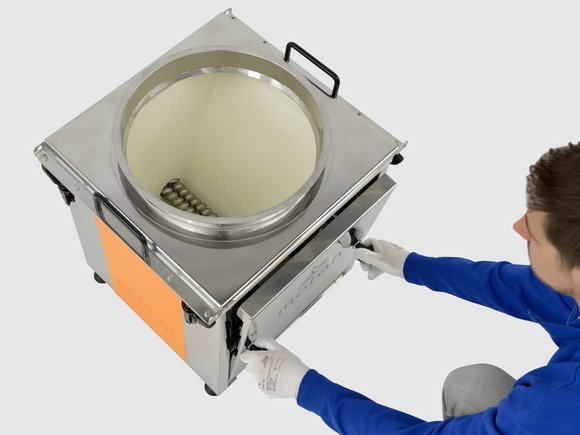

Quick material exchange

Higher efficiency thanks to less downtime in production.

You can install a hopper loader directly onto the lid of the supply hopper which does not need to be removed even during material changes.



×

Volumetric

SPECTROFLEX V

VOLUnet SF control

The cost effective solution for volumetric dosing.

Intuitive full colour graphic display with touch screen for hassle-free operation of SPECTROFLEX V.

  • Suitable for one dosing unit
  • Up to 50 recipes can be stored
  • Reporting function via Ethernet
  • Standard network interface (Ethernet) for integration in the motan CONTROLnet network
