GRAVIMASTER
The GRAVIMASTER control system regulates the throughput of an extruder or a dosing screw. It uses gravimetric throughput measurement with the help of a GRAVIFLOW weighing hopper to precisely adjust the throughput of an extruder.
The throughput measurement method is based on the weight loss measurement over a time interval (loss-in-weight). The GRAVIMASTER control supplies the weigh hopper and in turn records the weight signal with little interference, even over a longer distance.

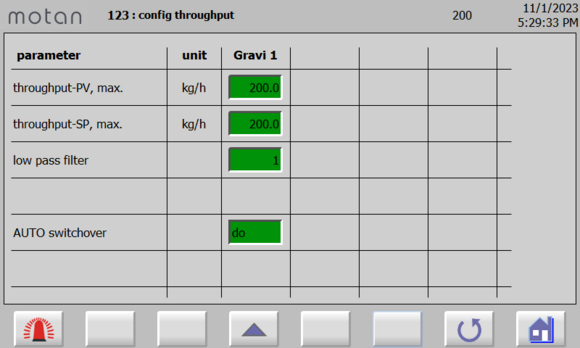

A clear and easy-to-use user interface distinguishes the GRAVIMASTER control. A special feature of this operation is that the extruder can be started via the speed and the gravimetric control can be activated at the operating point. This means that when the system is started, everything is still under manual control. The control has a modern full colour touch display.
- ×
Controls
GRAVIMASTER
System control

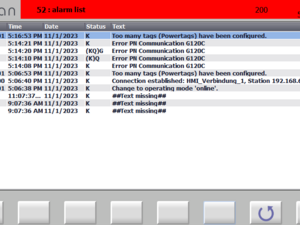

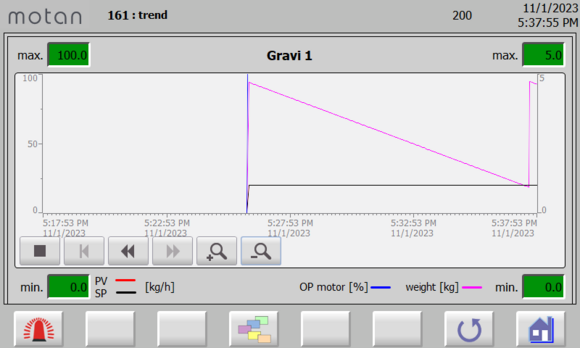

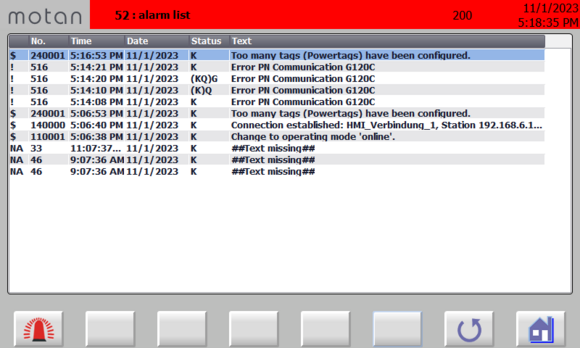

Validation enabled control for recording of process relevant parameters for complete documentation.- Compact Siemens S7-1200 / S7-1500 control unit
- Operating unit 7“ with full colour touch display
- Display size 214x158 mm, resolution 800x480
- Digital and analog interfaces
- Dedicated measuring module with ±4 million parts and an accuracy of 0.05 %
- Processing of the converted weight every 100 ms
- Configurable to different load cells
- Supply voltage 230 V AC (with control cabinet)

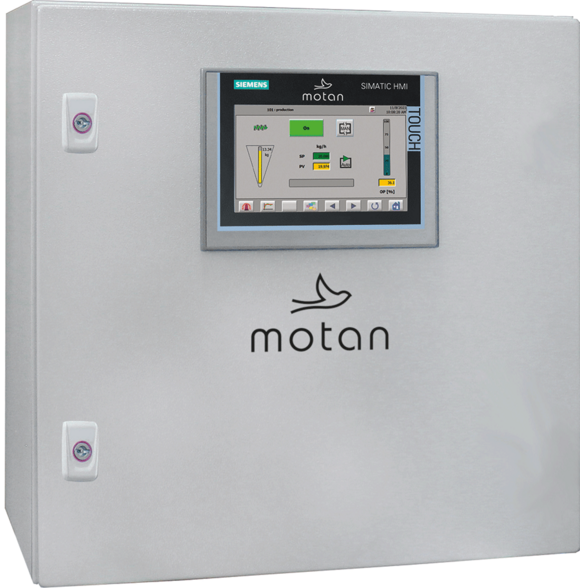

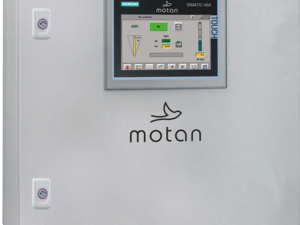

- Control cabinet 380x380x210 mm
- Network interface (for remote maintenance or communication)
