MINICOLOR SG V
Volumetric

MINICOLOR SG V

The volumetric additive dosing unit MINICOLOR SG V meets all important requirements when combining additives to the virgin material in an excellent quality. It has an excellent dosing accuracy and repeat accuracy. The installation of the MINICOLOR SG V in your system is extremely space-saving; it is mounted directly at the feed throat of the processing machine.

MINICOLOR SG V: Mixing neck
Mixing neck Create homogeneous mix Read more
MINICOLOR SG V: Synchronous dosing
Synchronous dosing No overdosing of expensive materials Read more
MINICOLOR SG V: Mounting flange
Mounting flange No need for drilling Read more
MINICOLOR SG V: Angled dosing screws
Angled dosing screws No uncontrolled loss of material Read more
MINICOLOR SG V: Dosing motors
Dosing motors No maintenance and high reliability Read more
MINICOLOR SG V: Simple calibration
Simple calibration Quick and easy without loss of material Read more
MINICOLOR SG V: Quick material changeovers
Quick material changeovers Low downtime and higher efficiency Read more
MINICOLOR SG V: METRO VL
METRO VL Never empty hoppers due to compressed air conveying. Read more
MINICOLOR SG V: VOLUnet MSG Control
VOLUnet MSG Control Cost-efficient solution for volumetric coloring with masterbatch. Read more
MINICOLOR SG V: VOLUnet MSG Mix Control
VOLUnet MSG Mix Control Better homogenization of the materials Read more
All advantages at a glance
Mixing neck
Synchronous dosing
Mounting flange
Angled dosing screws
Dosing motors
Simple calibration
Quick material changeovers
METRO VL
VOLUnet MSG Control
VOLUnet MSG Mix Control
  • ×
×

Volumetric

MINICOLOR SG V

Mixing neck

Create homogeneous mix

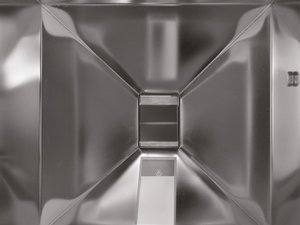

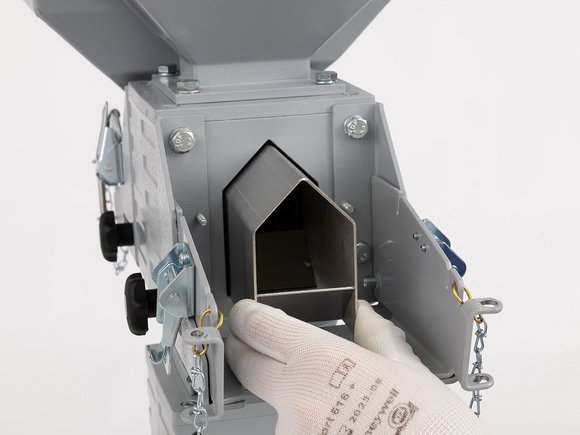

The mixing neck with integrated, cruciform stainless-steel inlet divides the main component from the additives into two material streams. These flow together before entering the processing machine and form a homogeneous mix.

×

Volumetric

MINICOLOR SG V

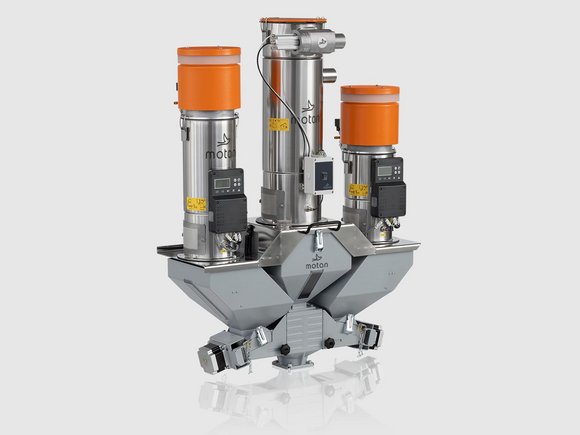

Synchronous dosing

No overdosing of expensive materials

With synchronous dosing, you can track the recipe accuracy and reproducibility at any time. This gives you a permanently good mixing quality of your recipe.

×

Volumetric

MINICOLOR SG V

Mounting flange

No need for drilling

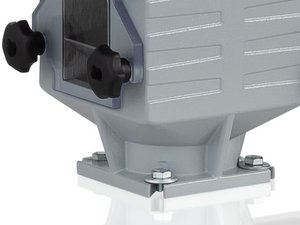

Mounting is super easy for the user due to the specially designed mounting flange. Drilling is not required. The unit is compatible with a wide range of feed throat sizes of processing machines and can therefore be used in many different ways.

×

Volumetric

MINICOLOR SG V

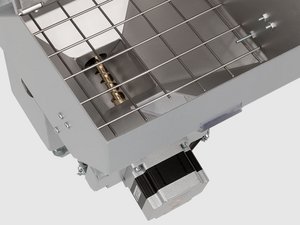

Angled dosing screws

No uncontrolled loss of material

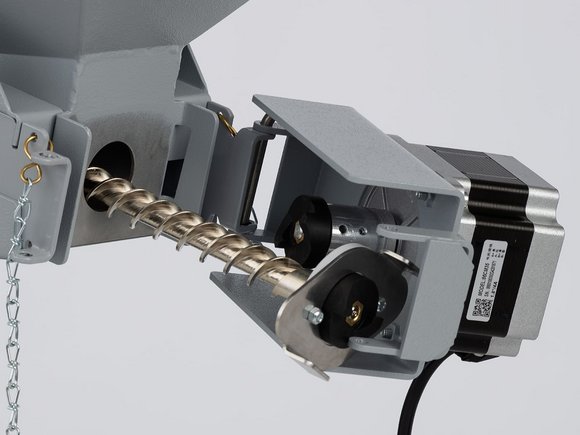

The dosing screws are available in three different sizes. They are wear-free and can be changed or installed and removed without tools.

For a constant mass flow, the screws are mounted at an angle and are insensitive to vibrations.

Machine movements therefore have no influence on the dosing process. This improves dosing accuracy and prevents unwanted material slip from the screw.

×

Volumetric

MINICOLOR SG V

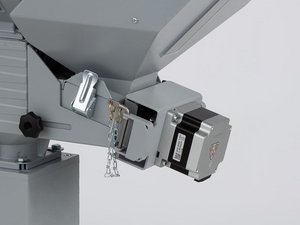

Dosing motors

No maintenance and high reliability

The MINICOLOR SG V features swiveling dosing motors that can even be disassembled or replaced without tools. The motors in combination with motor drivers offer a high degree of accuracy and are maintenance-free.

×

Volumetric

MINICOLOR SG V

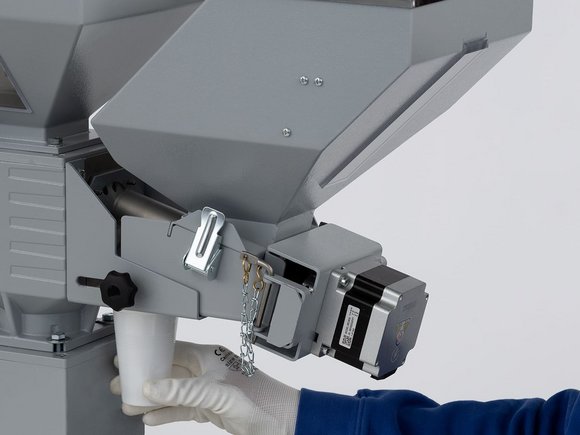

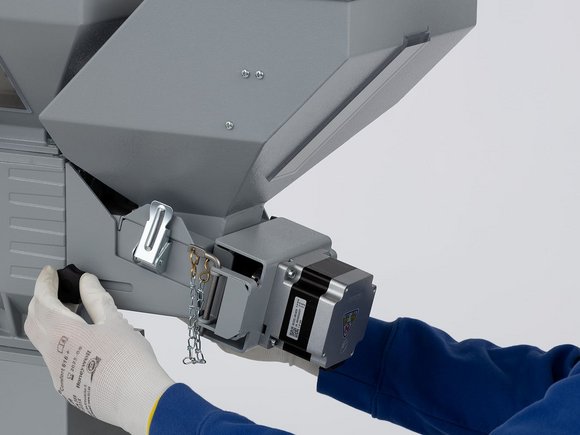

Simple calibration

Quick and easy without loss of material

Calibration is implemented by retracting the dosing module. The additive can be collected for measurement in the process. This simple process saves time and prevents material loss.

×

Volumetric

MINICOLOR SG V

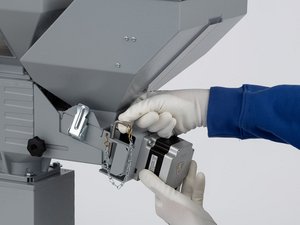

Quick material changeovers

Low downtime and higher efficiency

The quick-change system of the MINICOLOR SG V makes cleaning and material changeovers simple, fast and without tools. The removable supply hopper, the swivel mounted motor and the dosing screw with quick release connection for the user reduce the time required for cleaning. The complete dosing module can also be used as a color cassette – this also facilitates fast material changeovers without previous cleaning.

×

Volumetric

MINICOLOR SG V

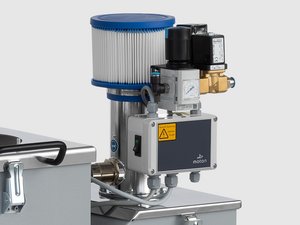

METRO VL

Never empty hoppers due to compressed air conveying.

The METRO VL compressed air material loader is used for automatic filling of the additive supply hopper on the MINICOLOR SG V. The material loader can be set up simply by replacing the lid on the supply container. The level sensor in the bin of the METRO VL ensures that granules are always refilled in good time.

×

Volumetric

MINICOLOR SG V

VOLUnet MSG Control

Cost-efficient solution for volumetric coloring with masterbatch.

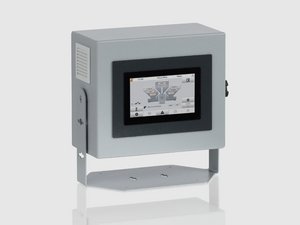

The intuitive touch-screen color display enables user-friendly operation of the MINICOLOR SG V.

  • Suitable for up to two dosing modules
  • Additive calibration assistant
  • Alarm tracking
  • Up to 100 recipes can be stored
  • Reporting function via Ethernet
  • Standard network interface (Ethernet) for integration in the motan CONTROLnet network
  • Optional "Mixer" function for controlling an additionally mixing motor
×

Volumetric

MINICOLOR SG V

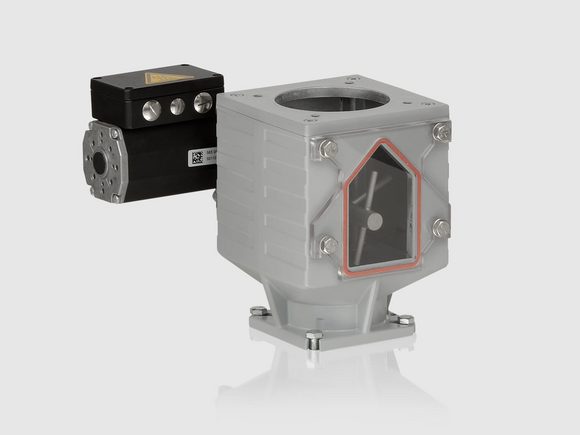

VOLUnet MSG Mix Control

Better homogenization of the materials

The VOLUnet MSG Mix Control can drive an optional mixer module, so that even difficult components can be mixed homogeneously after dosing. The result is a cost-effective solution for volumetric coloring with masterbatch.
