SPECTROPLUS
Gravimetric | Volumetric

SPECTROPLUS

SPECTROPLUS is a gravimetric & volumetric synchronous dosing & mixing unit for diverse materials – from granules, regrind or powders to liquids and flakes.

Due to the modular design of the SPECTROPLUS with only one frame size and up to 8 dosing module positions, it is one of the most flexible overall systems in the motan product world. In addition to the gravimetric and volumetric version, the SPECTROPLUS can also be combined (gravimetric and volumetric dosing modules in combination). This makes it ideal for individual applications and also complex end products.

motan's SPECTROFLEX units can easily be added to the SPECTROPLUS.

SPECTROPLUS: Wide range of applications
Wide range of applications More than just gravimetric or volumetric dosing Read more
SPECTROPLUS: Easy and quick installation
Easy and quick installation Compact design makes space-saving installation possible Read more
SPECTROPLUS: Customized applications
Customized applications Unbelievably flexible and individual adaptation Read more
SPECTROPLUS: New digital load cell system
New digital load cell system More precise and robust, faster and smarter Read more
SPECTROPLUS: New CAN motors
New CAN motors Higher performance Read more
SPECTROPLUS: Extrusion & Compounding applications
Extrusion & Compounding applications Perfectly connectable to the extruder Read more
SPECTROPLUS: Interchangeable dosing screws
Interchangeable dosing screws Cost-saving and faster material changes Read more
SPECTROPLUS: Easy retrofit and modification
Easy retrofit and modification Clever and compact in maintenance Read more
SPECTROPLUS: Quick cleaning
Quick cleaning Separate access to the agitator Read more
SPECTROPLUS: Option: Liquid dosing
Option: Liquid dosing Precise dosing of liquids Read more
SPECTROPLUS: SPECTROnet – new software and hardware
SPECTROnet – new software and hardware Easy and intuitive handling Read more
×

Gravimetric | Volumetric

SPECTROPLUS

Wide range of applications

More than just gravimetric or volumetric dosing

With only one frame and space for up to 8 mountable dosing modules, the complete SPECTROPLUS system can be optimally adapted to the most diverse dosing requirements.

Thanks to its modularity the unit can not only be used as a gravimetric or volumetric dosing system, but also be combined and used for both starve-fed and flood-fed processes.

It can be optimally adapted to the respective task and is designed to be used with up to 8 components for a wide range of applications.

×

Gravimetric | Volumetric

SPECTROPLUS

Easy and quick installation

Compact design makes space-saving installation possible

Thanks to the modular design SPECTROPLUS can be used for dosing modules with low hall ceilings as well as for larger scale projects.

The modularity of the whole dosing unit guarantees easy adaptation from single screws to twin screws.

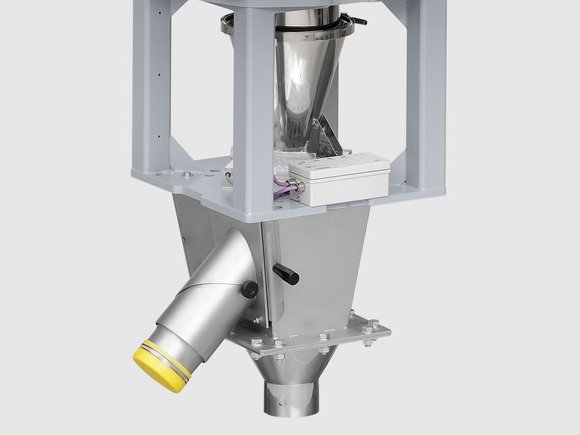

Due to the optional diagonally standing screws, applications where no material may drip are also possible.

×

Gravimetric | Volumetric

SPECTROPLUS

Customized applications

Unbelievably flexible and individual adaptation

Thanks to the newly developed frame, the SPECTROPLUS can be mounted directly onto the machine feed throat of the extruder or on a customer-specific mezzanine due to simple individual adapters.

×

Gravimetric | Volumetric

SPECTROPLUS

New digital load cell system

More precise and robust, faster and smarter

For the SPECTROPLUS, motan uses a combination of a high-quality six-wire strain gauge load cells and digital transducer electronics of the latest generation. The transducer electronics enables optimization of the weighing signal and transfers this directly to the controller via CAN - even over long distances. All possible errors of the analog signal transmission are excluded in this method.

The key advantages of this technology are:

  • Easy installation and calibration
  • Insensitive / durable and low maintenance hardware
  • Failure-free signal transmission
  • Less prone to external disturbing factors.

From adjustment to the filtered measurement signal in just a few minutes.

×

Gravimetric | Volumetric

SPECTROPLUS

New CAN motors

Higher performance

The new CAN motors with 24 V technology can be used worldwide without the need to adapt to local voltages. They are maintenance-free due to their brushless design.

×

Gravimetric | Volumetric

SPECTROPLUS

Extrusion & Compounding applications

Perfectly connectable to the extruder

The unit can be used for flood-fed extrusion as well as for starve-fed compounding installations. Single dosing modules of the SPECTROPLUS and SPECTROFLEX ramge can be added to an extruder side feed.

×

Gravimetric | Volumetric

SPECTROPLUS

Interchangeable dosing screws

Cost-saving and faster material changes

All dosing screws are interchangeable and are available in different versions such as spiral, auger or concave, single and double screws. Switching is quick and easy, saves money and time.

×

Gravimetric | Volumetric

SPECTROPLUS

Easy retrofit and modification

Clever and compact in maintenance

Thanks to its modular design, the SPECTROPLUS is not only easy to maintain but can also be retrofitted easily and flexibly.

Both the dosing modules and the dosing screws are changed in record time so that changeover times are shortened and your productivity is massively increased.

×

Gravimetric | Volumetric

SPECTROPLUS

Quick cleaning

Separate access to the agitator

In addition to quick emptying of free-flowing bulk solids, the SPECTROPUS dosing bins have a removable rear panel. This not only ensures quick retrofitting, but also quicker cleaning when installed, thus saving money and time.

×

Gravimetric | Volumetric

SPECTROPLUS

Option: Liquid dosing

Precise dosing of liquids

In addition to dosing modules for solids, gravimetric supply hoppers with dosing pumps for liquids can also be used.

Depending on the application, either gear dosing pumps for lubricating fluids or piston diaphragm pumps for non-lubricating fluids are used for dosing.

×

Gravimetric | Volumetric

SPECTROPLUS

SPECTROnet – new software and hardware

Easy and intuitive handling

SPECTROnet can be used to control volumetric and gravimetric dosing modules from the SPECTROPLUS modular system as well as external dosing units.

The further developed logic of the software in combination with new hardware has improved the control time and increased the area of application.

Thanks to the CAN technology, each setup can now be easily configured via the large panel and individually tailored to the process.

Furthermore, the disturbance sensitiveness and longevity has been improved by high quality components.
