MINICOLOR V
Volumetric

MINICOLOR V

The demand for excellent mixing quality and consistently accurate dosing is a must when combining additives to the virgin material at the processing machine.
The volumetric MINICOLOR V dosing and mixing units meet and exceed these requirements. Mounted at the feed throat of the plastics processing machine, the units require very little space.
Depending on need and requirement, screw or disc dosing modules can be installed at the mixing neck. Disc dosing is ideal for translucent and opaque parts as well as for dosing very small quantities.

MINICOLOR V: Mixing neck
Mixing neck Unbeatable mixing quality. Read more
MINICOLOR V: Synchronous dosing
Synchronous dosing Better quality of end product and cost-efficient because no overdosing of expensive materials. Read more
MINICOLOR V: Mounting flange
Mounting flange Easy to fit – no need for drilling. Read more
MINICOLOR V: Angled dosing screws
Angled dosing screws Greater accuracy because no material slip. Read more
MINICOLOR V: Disc dosing
Disc dosing Very high dosing accuracy - even for small dosing quantities. Read more
MINICOLOR V: Dosing motors
Dosing motors Greater reliability because maintenance free. Read more
MINICOLOR V: Simple calibration
Simple calibration Quick and easy with no material spillage. Read more
MINICOLOR V: Quick material changeovers
Quick material changeovers Higher efficiency because more time spent in production. Read more
MINICOLOR V: METRO VL
METRO VL Ensures that the supply hopper will not run empty. Read more
MINICOLOR V: VOLU MC control
VOLU MC control Cost effective solution for volumetric colouring with masterbatch. Read more
MINICOLOR V: VOLUnet MC control
VOLUnet MC control Automatic additive calibration saves money because no overdosing of additives. Read more
All advantages at a glance
Mixing neck
Synchronous dosing
Mounting flange
Angled dosing screws
Disc dosing
Dosing motors
Simple calibration
Quick material changeovers
METRO VL
VOLU MC control
VOLUnet MC control
  • ×
×

Volumetric

MINICOLOR V

Mixing neck

Unbeatable mixing quality.

The mixing cruciform is made of stainless steel. It separates the main material from the additives until they meet just above the throat of the processing machine. They then flow together, resulting in a homogeneous mix with no material separation.

×

Volumetric

MINICOLOR V

Synchronous dosing

Better quality of end product and cost-efficient because no overdosing of expensive materials.

Synchronous dosing provides excellent recipe accuracy and reproducibility which can be traced at any time.

×

Volumetric

MINICOLOR V

Mounting flange

Easy to fit – no need for drilling.

The mounting flange is designed so that it can easily be mounted on different sized feed throats without the need for drilling.

×

Volumetric

MINICOLOR V

Angled dosing screws

Greater accuracy because no material slip.

There are three different sizes of wear-resistant dosing screws available and they can be removed without the use of tools. The screws are inclined at an angle for a constant dosing flow insensitive to vibration. This gives you greater accuracy because machine movements have no effect on the dosing process and material slip on the screw is eliminated.

×

Volumetric

MINICOLOR V

Disc dosing

Very high dosing accuracy - even for small dosing quantities.

The dosing disc with the MINICOLOR V gives you real volume dosing which guarantees very high dosing accuracy – even for very small dosing quantities. The discs are available in three different sizes (wear resistant design optional).

×

Volumetric

MINICOLOR V

Dosing motors

Greater reliability because maintenance free.

The dosing motors are swivel mounted and can be removed without tools. The motors are brushless and have integrated motor management which makes them maintenance free.

×

Volumetric

MINICOLOR V

Simple calibration

Quick and easy with no material spillage.

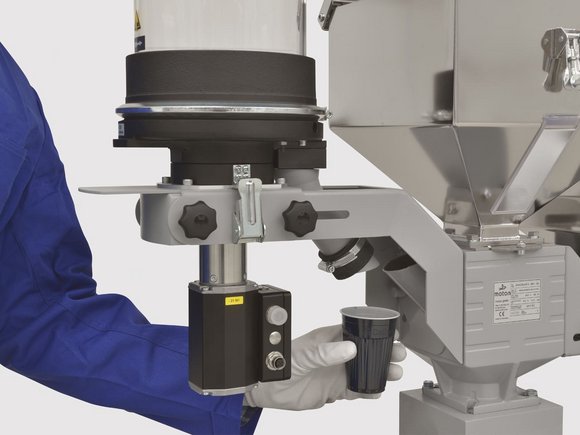

During calibration, you can easily withdraw the dosing module by loosening two star grips in order to collect and weigh the additive sample. This means you save time and there is no material spillage.

×

Volumetric

MINICOLOR V

Quick material changeovers

Higher efficiency because more time spent in production.

Cleaning and material changeovers are fast and require no tools. The quick-change system, a removable supply hopper, a swivel mounted motor, and a dosing screw with a quick release connection, makes the unit easy to operate and saves you valuable time. The complete dosing module can be used as a colour cassette, allowing you fast colour changes without any previous cleaning.

×

Volumetric

MINICOLOR V

METRO VL

Ensures that the supply hopper will not run empty.

For automatic filling of the additive supply hopper of the MINICOLOR V you can use a compressed air loader. The loader can be installed by replacing the supply hopper lid. With METRO VL, a level sensor in the hopper signals the need for material and ensures that the hopper never runs empty.

×

Volumetric

MINICOLOR V

VOLU MC control

Cost effective solution for volumetric colouring with masterbatch.

Modern microprocessor control with time function and easy operation for a MINICOLOR V with one dosing module.

×

Volumetric

MINICOLOR V

VOLUnet MC control

Automatic additive calibration saves money because no overdosing of additives.

Intuitive full colour graphic display with touch screen for hassle-free operation of MINICOLOR V.

  • Suitable for one or two dosing modules
  • Additive calibration wizard
  • Up to 50 recipes can be stored
  • Reporting function via Ethernet
  • Standard network interface (Ethernet) for integration in the motan CONTROLnet network
  • Regrind compensation function
