MINIBLEND V
Volumetric

MINIBLEND V

The demand for excellent mixing quality and consistently accurate dosing is a must when combining additives to the virgin material at the processing machine.


The volumetric MINIBLEND V dosing and mixing unit meets and exceeds these requirements. Mounted at the feed throat of the plastics processing machine, the unit requires very little space.


Disc dosing is ideal for translucent and opaque parts as well as for dosing very small quantities.

MINIBLEND V: Vertical additive dosing
Vertical additive dosing Greater accuracy because no material hang-up or bridging. Read more
MINIBLEND V: Synchronous dosing
Synchronous dosing Greater accuracy because no material hang-up or bridging. Read more
MINIBLEND V: Mixing neck in electro-polished stainless steel
Mixing neck in electro-polished stainless steel The smooth surface guarantees no material hang-up. Read more
MINIBLEND V: Mounting flange
Mounting flange Easy to fit – no need for drilling. Read more
MINIBLEND V: Disc dosing
Disc dosing Very high dosing accuracy -even for small dosing quantities. Read more
MINIBLEND V: Granule cutter
Granule cutter Dosing accuracy even for small dosing quantities. Read more
MINIBLEND V: Dosing of non-free-flowing powders
Dosing of non-free-flowing powders Flexibility for a wide range of applications. Read more
MINIBLEND V: Dosing motor
Dosing motor Greater reliability because maintenance free. Read more
MINIBLEND V: Simple calibration
Simple calibration Quick and easy with no material spillage. Read more
MINIBLEND V: Quick material changeovers
Quick material changeovers Higher efficiency because more time spent in production. Read more
MINIBLEND V: Multiple hopper combinations
Multiple hopper combinations Better fit to your application. Read more
MINIBLEND V: VOLU MC control
VOLU MC control Cost effective solution for volumetric colouring with masterbatch. Read more
MINIBLEND V: VOLUnet MC control
VOLUnet MC control Automatic additive calibration saves money because no overdosing of additives. Read more
All advantages at a glance
Vertical additive dosing
Synchronous dosing
Mixing neck in electro-polished stainless steel
Mounting flange
Disc dosing
Granule cutter
Dosing of non-free-flowing powders
Dosing motor
Simple calibration
Quick material changeovers
Multiple hopper combinations
VOLU MC control
VOLUnet MC control
  • ×
×

Volumetric

MINIBLEND V

Vertical additive dosing

Greater accuracy because no material hang-up or bridging.

The Y shaped mixing neck allows the main additive to fall vertically into the feed throat of the processing machine, eliminating material hang-up or bridging. The main material is kept separate from the additive until they meet just above the throat of the processing machine. They then flow together, resulting in a homogeneous mix with no material separation.

×

Volumetric

MINIBLEND V

Synchronous dosing

Greater accuracy because no material hang-up or bridging.

Synchronous dosing provides excellent recipe accuracy and reproducibility which can be traced at any time.

×

Volumetric

MINIBLEND V

Mixing neck in electro-polished stainless steel

The smooth surface guarantees no material hang-up.

The Y shaped mixing necks are available in electro-polished stainless steel. They have a smoother surface, which is a benefit particularly for powders and dusty materials.

×

Volumetric

MINIBLEND V

Mounting flange

Easy to fit – no need for drilling.

The large mounting flange is designed so that it can easily be mounted on different sized feed throats without the need for drilling.

×

Volumetric

MINIBLEND V

Disc dosing

Very high dosing accuracy -even for small dosing quantities.

The dosing disc with the MINIBLEND V gives you real volume dosing which guarantees very high dosing accuracy – even for very small dosing quantities. The discs are available in eight different sizes (wear-resistant design optional).

×

Volumetric

MINIBLEND V

Granule cutter

Dosing accuracy even for small dosing quantities.

When dosing very small throughputs a single granule of material can have a big impact on accuracy. In order to alleviate this problem, all dosing discs are fitted with a cutter which ensures that the dosing chamber is always uniformly filled.

×

Volumetric

MINIBLEND V

Dosing of non-free-flowing powders

Flexibility for a wide range of applications.

A dosing module equipped with a powder dosing disc, allows you to dose non-free-flowing powders. The compact, modular design gives you the flexibility to meet your changing process requirements. The agitator above the dosing disc constantly keeps material in motion, thus eliminating bridging and maintaining consistent disc fill.

×

Volumetric

MINIBLEND V

Dosing motor

Greater reliability because maintenance free.

The dosing motor can be removed easily. The motor is brushless and has an integrated motor management which makes it maintenance free.

×

Volumetric

MINIBLEND V

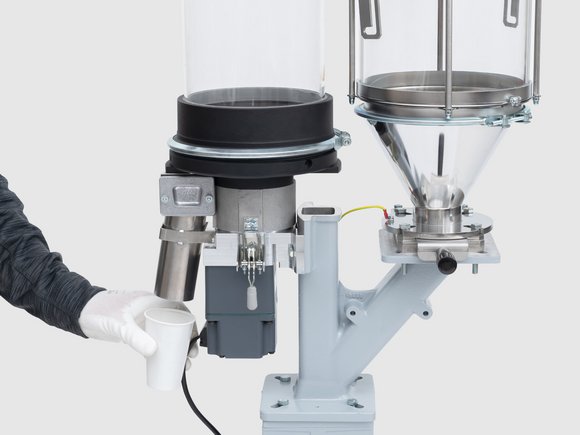

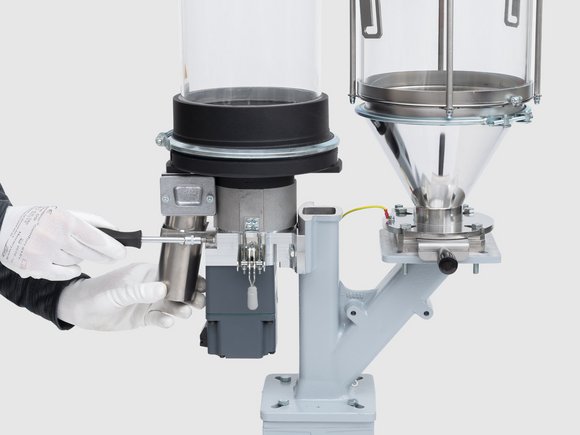

Simple calibration

Quick and easy with no material spillage.

Calibration is conducted using a calibration drawer. This allows the additive to be collected and measured easily, saving time and preventing material spillage.

×

Volumetric

MINIBLEND V

Quick material changeovers

Higher efficiency because more time spent in production.

Cleaning and material changeovers are fast and require no tools. The quick-change system, consisting of a removable supply hopper and dosing disc, makes the unit easy to clean and saves you valuable time.
The complete dosing module can be used as a colour cassette, allowing you fast colour changes without any previous cleaning.

×

Volumetric

MINIBLEND V

Multiple hopper combinations

Better fit to your application.

The MINIBLEND V can be adapted to the needs of your specific application, with three different additive supply hopper volumes, in either glass or electro-polished stainless steel, and the option of either manual or hopper loader filling.

×

Volumetric

MINIBLEND V

VOLU MC control

Cost effective solution for volumetric colouring with masterbatch.

Modern microprocessor control with timer function and easy operation for a MINIBLEND V with one dosing module.

×

Volumetric

MINIBLEND V

VOLUnet MC control

Automatic additive calibration saves money because no overdosing of additives.

Intuitive full colour graphic display with touch screen for hassle-free operation of MINIBLEND V.

  • Suitable for one or two dosing modules
  • Additive calibration wizard
  • Up to 50 recipes can be stored
  • Reporting function via Ethernet
  • Standard network interface (Ethernet) for integration in the motan CONTROLnet network
  • Regrind compensation function
