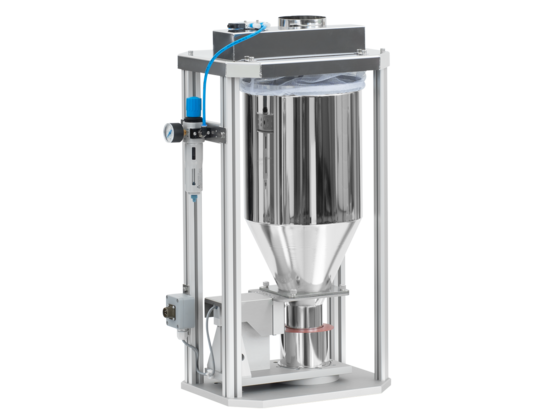

GRAVIFLOW
GRAVIFLOW is designed for the gravimetric throughput measurement of free-flowing bulk materials such as granulate and regrind. Available in various sizes, it supports throughput rates ranging from 1 to 1,500 kg/h. For use in mono- and co-extrusion lines and in combination with dosing units.
The compact weigh hopper stands out thanks to its space-saving design, robust construction, and low maintenance requirements. GRAVIFLOW can be easily integrated into existing production systems and installed with minimal effort. It is mounted either directly on the feed throat or flexibly via adapters on various discharge units.
GRAVIFLOW offers a high degree of flexibility in control integration. Depending on the application, control solutions can be customised to meet specific customer requirements.
- ×
Gravimetric | Volumetric
GRAVIFLOW

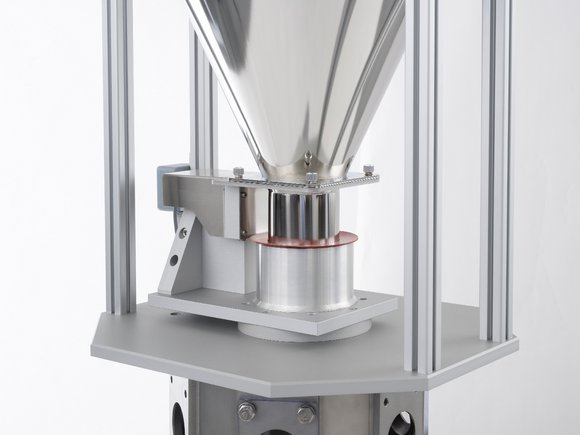

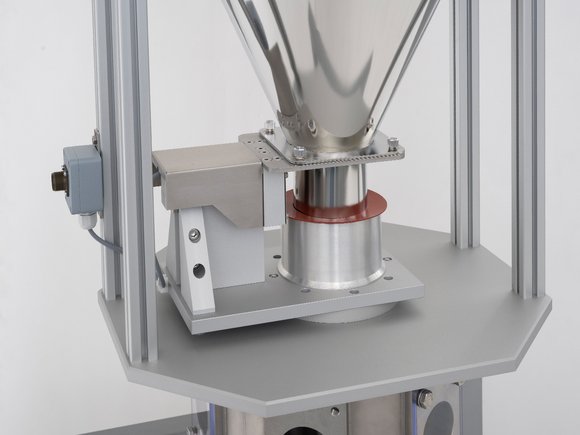

Weighing unit
Precise throughput measurement through direct weighing.A precise throughput measurement is achieved through a well-thought-out design in which only the weigh bin is weighed. This minimizes external influences and significantly increases measuring accuracy.
Gravimetric | Volumetric
GRAVIFLOW

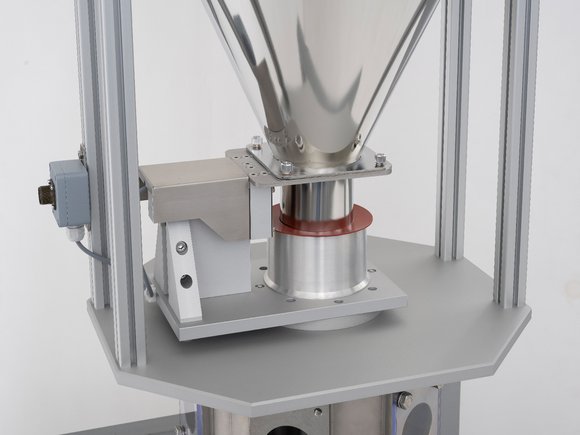

Overload protection
Increased reliability through good design.The mechanical design is engineered to effectively protect the load cell against overload and mechanical impact. The result is increased service life and improved process reliability.
Gravimetric | Volumetric
GRAVIFLOW

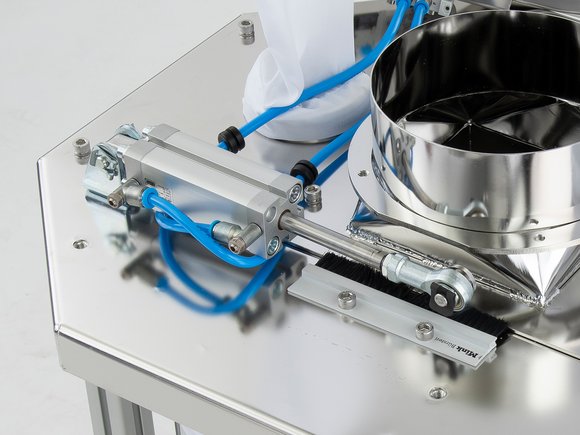

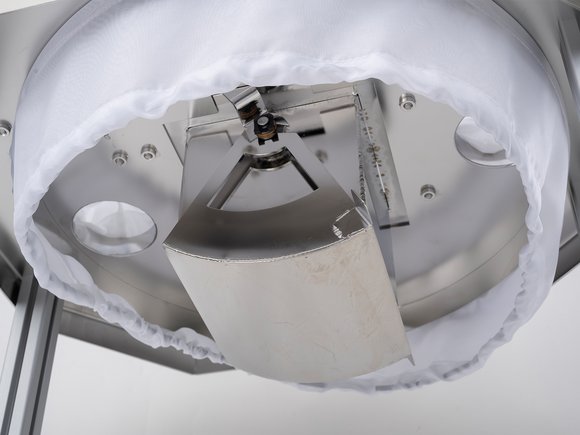

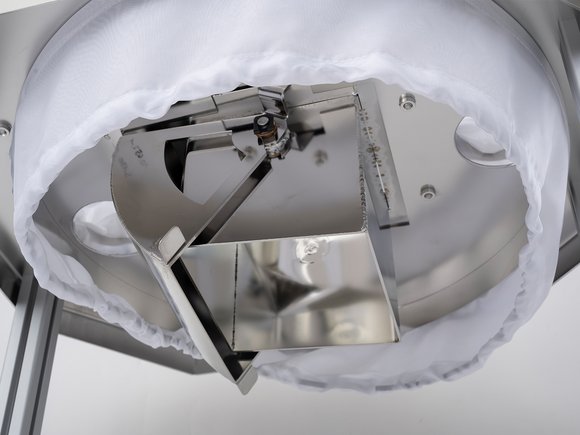

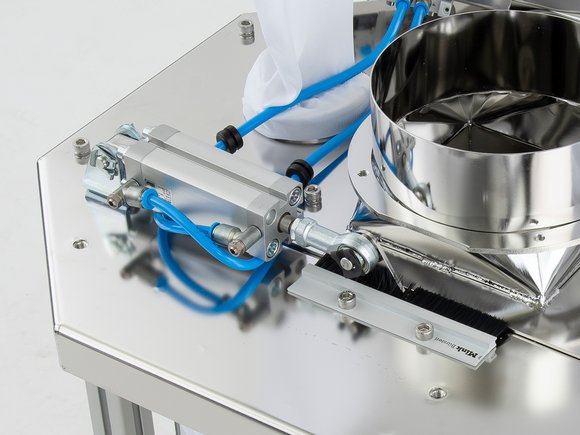

Optimal filling
Intelligent positioning of the filling valve.Optimal filling is ensured with the swing flap, which separates the material flow and prevents blockages. In addition, the internal filling valve enables immediate and precise weight measurement directly after filling – without any process delay.
Gravimetric | Volumetric
GRAVIFLOW

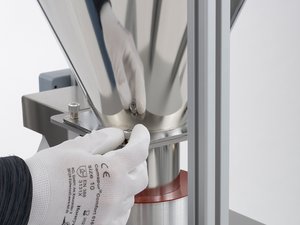

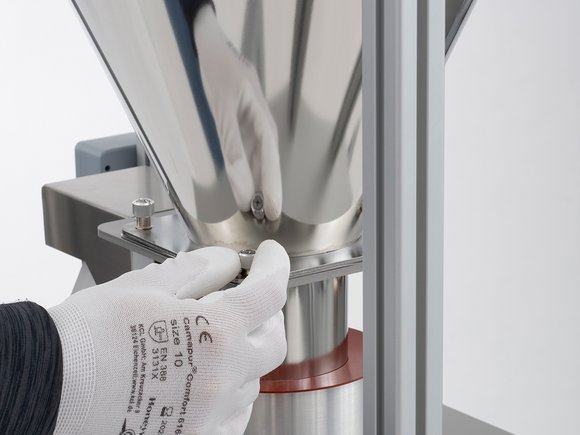

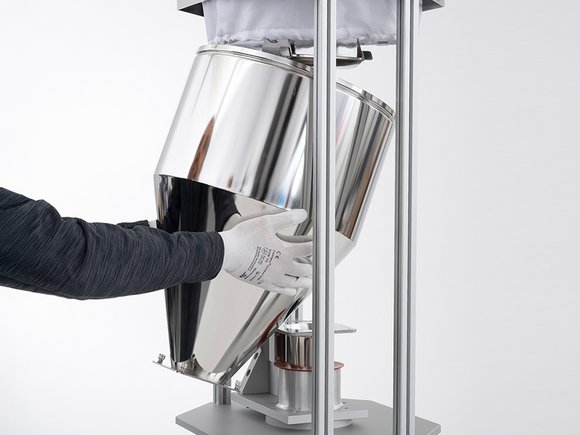

Cleaning and maintenance
Easy cleaning thanks to optimal accessibility.Thanks to the frame construction, all GRAVIFLOW components can be easily removed for cleaning or inspection. This enables efficient maintenance and thorough cleaning.
Gravimetric | Volumetric
GRAVIFLOW

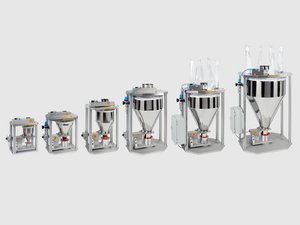

Product variants
Size options tailored to the required throughput.GRAVIFLOW is available in various sizes, allowing throughput rates from 1 to 1,500 kg/h. This ensures that the ideal unit size is available for every process.
Gravimetric | Volumetric
GRAVIFLOW

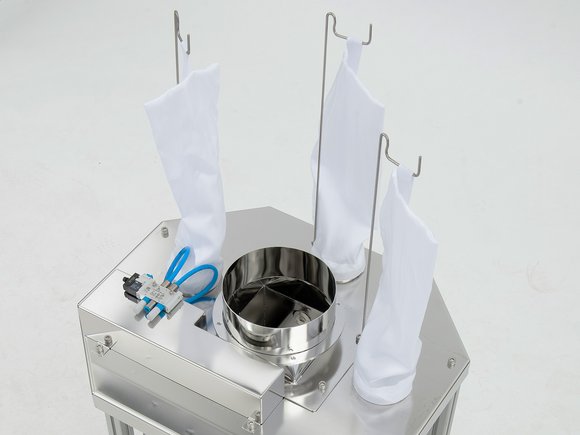

Air outlet
Efficient air discharge during refilling.The GRAVIFLOW M series is equipped with multiple air outlets with filters in the lid, which improve air release during refilling. This significantly increases the outlet area. Cleaning is possible even during operation.
Gravimetric | Volumetric
GRAVIFLOW

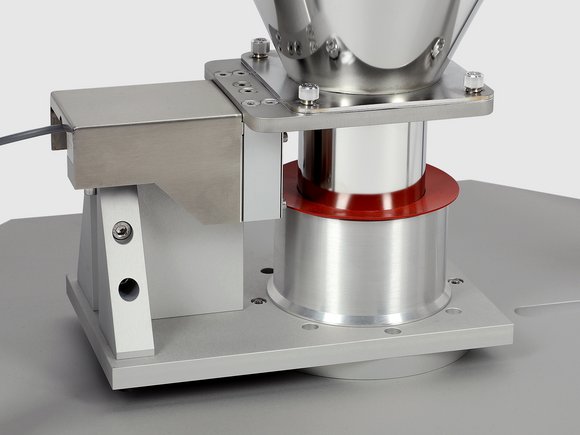

Compact weighing platform
Compact design for quick and easy replacement.The compact weighing platform, including the electrical connection, can be easily and quickly replaced. This allows the mechanical unit to be exchanged within minutes if needed, significantly reducing downtime.
Gravimetric | Volumetric
GRAVIFLOW

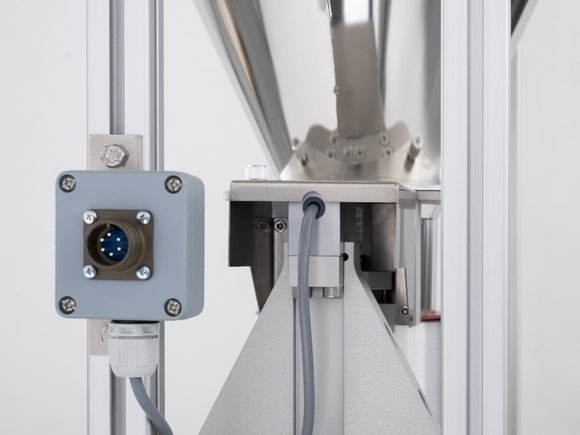

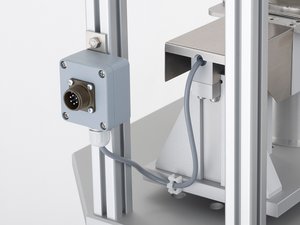

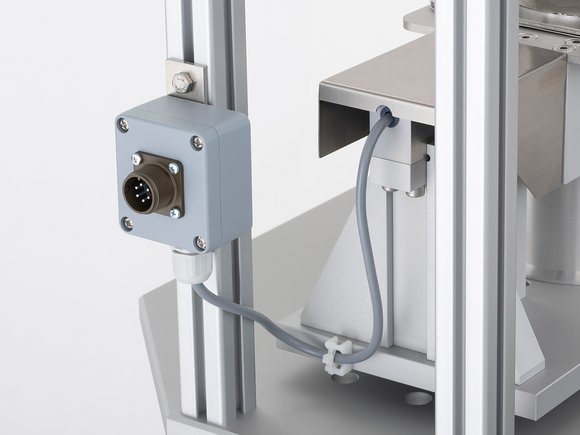

Simple connection
Two standardized cable connections.The load cell and filling valve are connected via robust, cable plugs and sockets. This allows the use of industry standard connectors and prefabricated cables, ensuring maximum flexibility during installation and maintenance.
Gravimetric | Volumetric
GRAVIFLOW

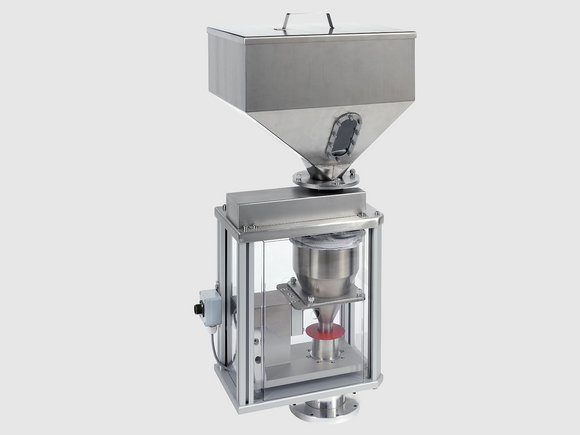

Customised solutions
Tailored solutions for individual requirements.Customised solutions enable application specific integration of customer requirements into the unit and system design. This ensures the system is optimally adapted to the respective application.
